EZCast Mini Media streaming device AirPlay, Alexa voice, DLNA, Miracast

Technical data

EZCast Mini 4K streaming box

Screen transfer made easy
With or without cable insert? The EZCast Mini 4K Streaming Box can transfer both and transfers photos or videos to large screens in an image resolution of 4K – simply and everywhere. Thanks to the variable connection options via WLAN, WiFi or LAN, an extremely stable Wi-Fi performance and the broad compatibility with all iOS, Android, MacOS and Windows devices, the compact streaming box is suitable for every user. It also provides access to content from cloud stores and other shared albums. Especially clever: Fans of Alexa or Google Home can control the streaming box with voice commands.

Highlights & Details

• Wi-Fi & Ethernet connection directly to the router
• Two-way connection for screen transmission (screen mirroring)
• Two antennas for strong single-nals and a stable transmission
• Voice control with Google Home & Alexa (Alexa for English only)
• Supports iOS, Android, Mac & Windows
• Supports casting via mobile charging cable
• Supports portrait mode: Cast at 0, 90, 180, or 270 angle, ideal for business promotions or live commerce.
• USB port for image playback

Facts

• Transmission types: WiFi, WLAN, LAN
• WLAN transfer rate: 10 / 100 / 1000 MBit/s
• WLAN FREQUENCY: 5G, 2.4G

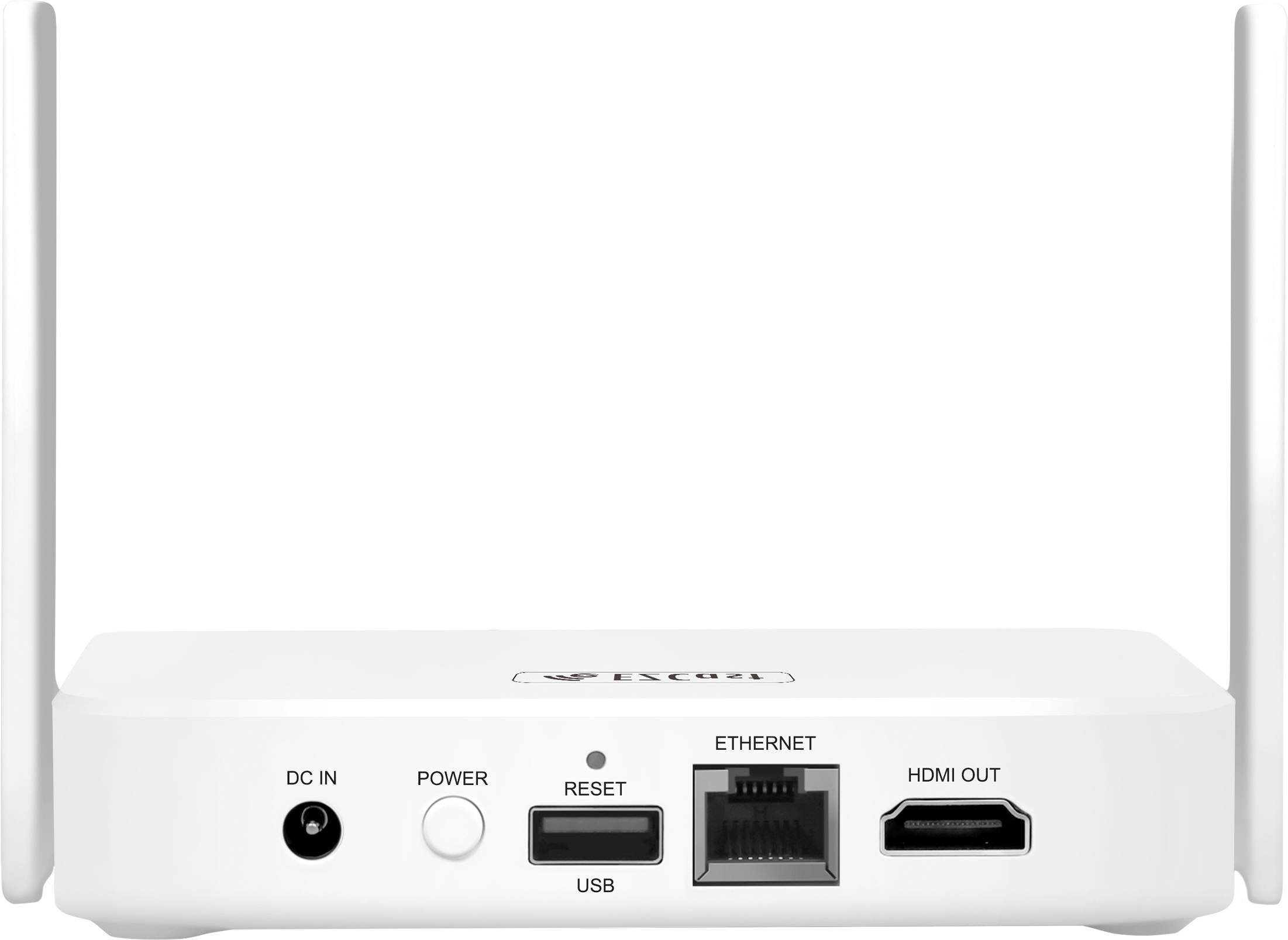

• INTERFACES: RJ45, USB 2.0, HDMI
• Resolution: 4K at 30 Hertz
• Power: 5V/2A
• Chip: AM8270
• Dimensions : 135 x 130 x 20 mm (horizontal), 135 x 80 x 125 mm (upright)
• Weight: 188 g
• Operating temperature & humidity: 10 – 40 °C & 10 – 90 % (non-condensing)
• Storage temperature and humidity : -20 – 70 °C & 5 – 90 % (non-condensing)
• Streaming support: AirPlay, Alexa voice control, DLNA, Miracast
• smart Home Cloud connection: Alexa, Google Home
• Power supply: USB
• Supports Windows 7/8/10 and later, Mac 10.10 and later, Chrome OS, iOS 10.0 and later, Android 4.4 and later

Delivery

• EZCast Minibox
• HDMI Cable 30 cm
• Ethernet cable (300 cm)
• Power supply (m/n: ICP12-050-2000B)
• USB AC cable (100 cm)
• User manual
• Quick start instructions
